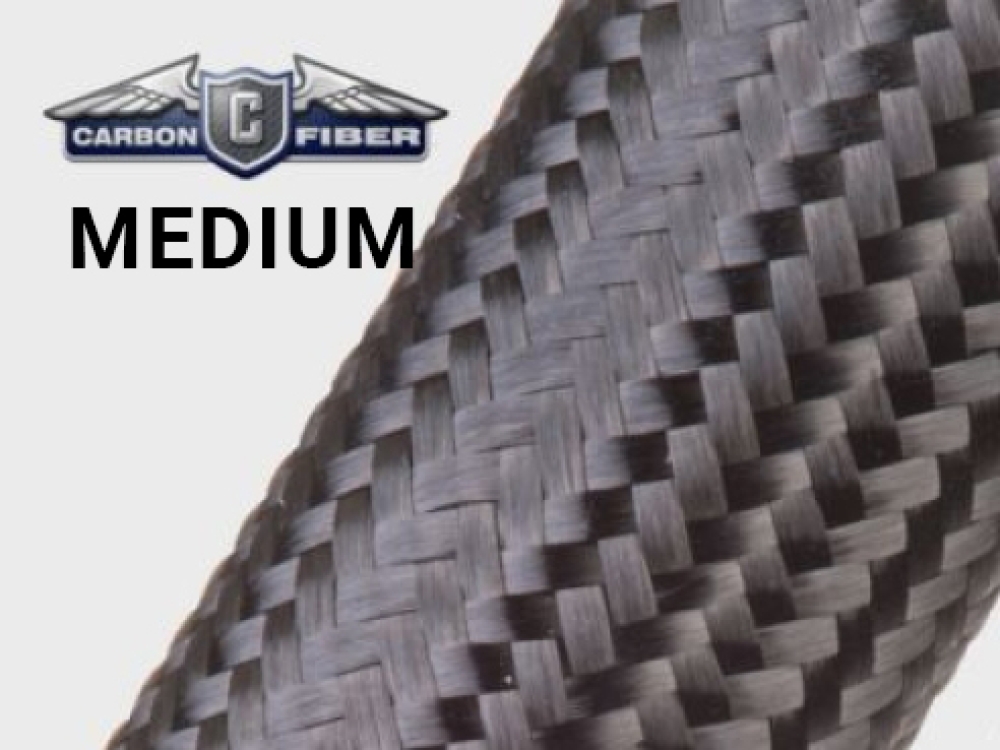

ARBON FIBER MEDIUM - Carbon fiber braid medium

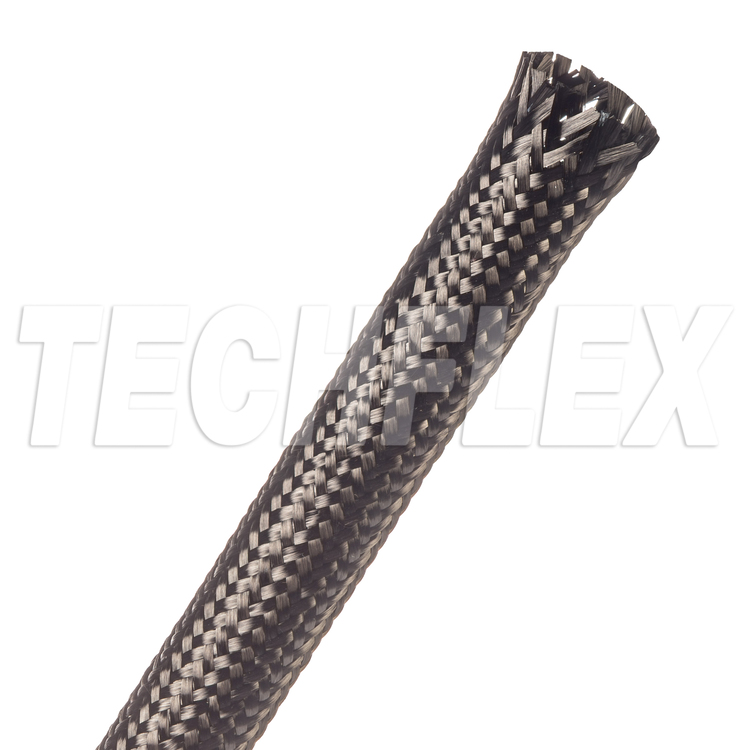

Carbon Fiber Sleeve for High Strength Tubular Structures

• Reinforcing fiber
• Dissipation of electrical charges
• Strong, bi-axially braided carbon fiber matrix
• Without seams or overlaps

Fabricators know that resin coated carbon fiber structures are stronger and lighter than virtually any other construction types. Carbon Fiber construction techniques are appearing in everything from state of the art military and aerospace airframes to hockey sticks, fishing rods and model cars.

Our Carbon Fiber braided sleeving provides a strong, biaxial carbon fiber matrix for stiff, lightweight tubular structures up to 55,5 mm in diameter without seams or overlap. The tightly braided thick flexible sleeving will form itself to accommodate elliptical or asymmetrical profiles and provide the full coverage required for radial stability and torsional strength.
Carbon Fiber constructions can be cut, drilled, sanded and tooled with commonly available power or hand tools. They can be painted or left with the braid structure exposed.



Certifications





Artikel- nummer	Durchmesser Innen in mm	Expansion min. / max.	Mini Spool	Bulk Spool
CAN0.50	12,7 mm	6,4 - 15,9 mm	15,2 m	76,2 m
CAN0.75	19,1 mm	7,9 - 22,2 mm	15,2 m	76,2 m
CAN1.00	25,4 mm	11,1 - 27,0 mm	15,2 m	61,0 m
CAN1.25	31,8 mm	14,3 - 38,1 mm	7,6 m	38,1 m
CAN1.50	38,1 mm	19,1 - 44,5 mm	7,6 m	30,5 m
CAN2.00	50,8 mm	22,2 - 55,5 mm	7,6 m	30,5 m
CAN2.50	63,5 mm	27,0 - 76,2 mm	7,6 m	30,5 m
