INSULTHERM® SNAP WRAP - Silicone High Temperature Protection with Easy Install Snaps

High Temperature Protection with Easy Install Snaps

• Protects against extreme heat, naked flames and molten splashes
• Resistant to all automotive chemicals and solvents
• Simple, subsequent installation
• Permanent temperature range: -73°C to 260°C, melting point 1,120°C

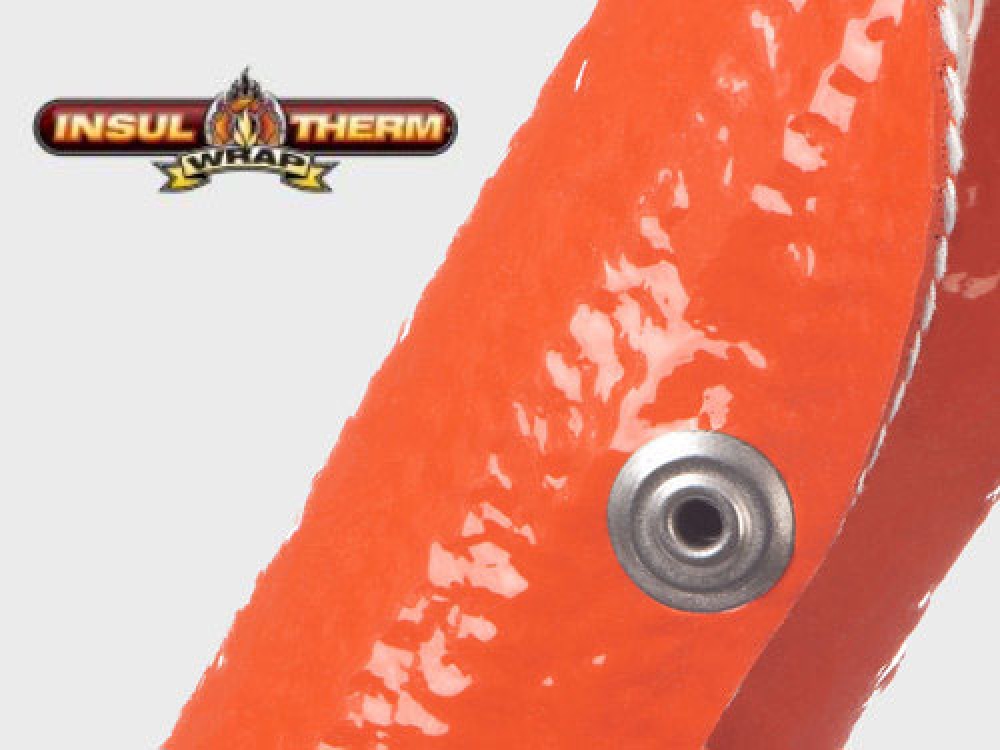

SNAP WRAP (FIS) is being constructed of silicone blanketed fiberglass which offers high temperature protection. Heavy duty snaps dot the edges allowing quick and easy installation that’s, um…well, a snap! Snap Wrap is engineered to protect welding hoses and assemblies from damage due to exposure to extreme heat, open flame, molten splash and welding sparks. The thick, high temperature fiberglass sleeve is jacketed with a non-permeable, heavy silicone coating that is flexible enough to follow tight radius curves, resists all automotive chemicals and solvents, and provides a substantial level of abrasion and puncture protection. Snap Wrap is completely non-conductive, will not melt, delaminate, become brittle or support combustion under normal conditions. It provides a quick and professional level solution to your welding or fabrication thermal and abrasion protection needs.


Certifications





Artikel- nummer	Durchmesser Innen in mm	Wand- stärke	Mini Spool	Bulk Spool
FIS0.50	12,7 mm	1,7 mm	7,6 m	15,2 m
FIS0.75	19,1 mm	1,7 mm	7,6 m	15,2 m
FIS1.00	25,4 mm	1,7 mm	7,6 m	15,2 m
FIS1.25	31,8 mm	1,7 mm	7,6 m	15,2 m
FIS1.50	38,1 mm	1,7 mm	7,6 m	15,2 m
FIS2.00	50,8 mm	1,7 mm	7,6 m	15,2 m
FIS2.50	63,5 mm	1,7 mm	7,6 m	15,2 m
FIS3.00	76,2 mm	1,7 mm	7,6 m	15,2 m
FIS3.50	88,9 mm	1,7 mm	7,6 m	15,2 m
